NZXT AIO pipe broke off :( any suggestions?

Rating - 100%
32   0   0
Joined
Nov 1, 2018
Messages
211
Reaction score
51
Points
785
Age
31
Hi Carbies!
So the pipe on my AIO has broken off on the plastic... Any tips on what can be done?? The pipe broke off just under the barb and the piece has since been lost... I've attached a pic..

Any help would be appreciated! 😢
If the link doesn't work, please let me know... Uploading the link from my phone.



solz

Member
Rating - 100%
54   0   0
Joined
Feb 28, 2019
Messages
454
Reaction score
121
Points
815
Age
33
Would only be able to advise if I could see it and take apart to be able to see if can be fixed. But I do believe it can be fixed. But probably not advisable.


PandaAttack1

ooh wee!
VIP Supporter
Rating - 100%
96   0   0
Joined
May 9, 2013
Messages
3,713
Reaction score
2,464
Points
2,815
Location
Pta East
Hi Carbies!
So the pipe on my AIO has broken off on the plastic... Any tips on what can be done?? The pipe broke off just under the barb and the piece has since been lost... I've attached a pic..

Any help would be appreciated! 😢
If the link doesn't work, please let me know... Uploading the link from my phone.

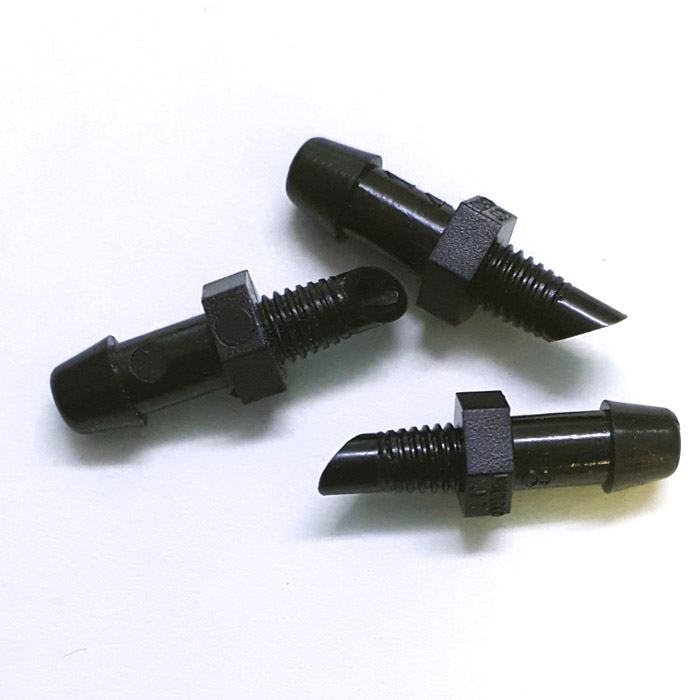

If I were to fix this, I would take the entire thing apart, sand the broken part flat. Then tap a hole for a threaded barbed connector.

Thread in a new connector with some teflon tape and you are golden. You can even put epoxy on the thread if you really want to make it watertight.

These AIO's don't hold a lot of pressure and they don't need to handle a lot of heat.


Bencrisp

Well-Known member
Rating - 100%
92   0   0
Joined
Aug 21, 2013
Messages
944
Reaction score
164
Points
1,485
Plastic rebuilders...we have on in PE. Maybe you guys have a branch there. Take it to them and ask them to make a plan for you. Pricing is normally quite reasonable

Rating - 100%
32   0   0
Joined
Nov 1, 2018
Messages
211
Reaction score
51
Points
785
Age
31
Thank you all!
My little nephew thought it was a great idea to yank at it😒

To top up the Coolant again, is it just distilled water? Im sure theres something else to add (the radiator is aluminum and the heat sink is copper)


Dirtdiver

Senior Member
Rating - 100%
35   0   0
Joined
May 19, 2011
Messages
1,176
Reaction score
189
Points
1,885
Location
Durban
I guess mod it now. I remember the H50 days, guys should do that, put their own Barb's on


wes1987

Well Known Member
Rating - 100%
20   0   0
Joined
Apr 21, 2013
Messages
183
Reaction score
70
Points
1,235
Age
33
Getting it fixed is one thing, filling the loop is another.

What you would need is distilled water, and antifreeze (this prevents corrosion), Then you need to run the loop while filling to get all the air bubbles out, any air bubbles left could prevent the pump from moving liquid around.

my H110 ended up with a leak, which I fixed. I then had to braze a bolt on the rad for filling purposes, that worked for me. so for filling now all I do is open the bolt and refill.
