My 2nd Case Design (8.5L)

SohailCPT

Junior Member
Rating - 100%
26   0   0
Joined
Mar 16, 2015
Messages
637
Reaction score
82
Points
1,085
Location
CPT
Hi.

So most of you guys are aware of my first case I design and built, can be found. HERE
That project was fun, but more importantly I learnt alot.

There were a few incorrect measurement, line ups were'nt perfect etc..

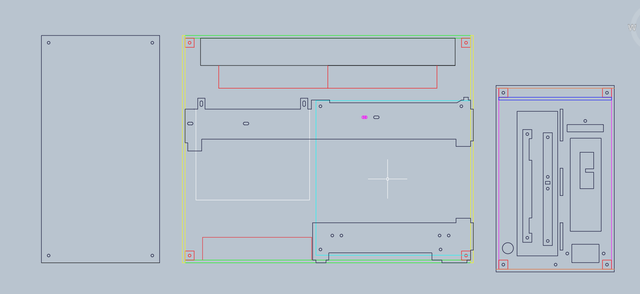

This past few weeks I was jamming my AutoCad alot. After about 5 other designs, I scrapped, I settled on this.

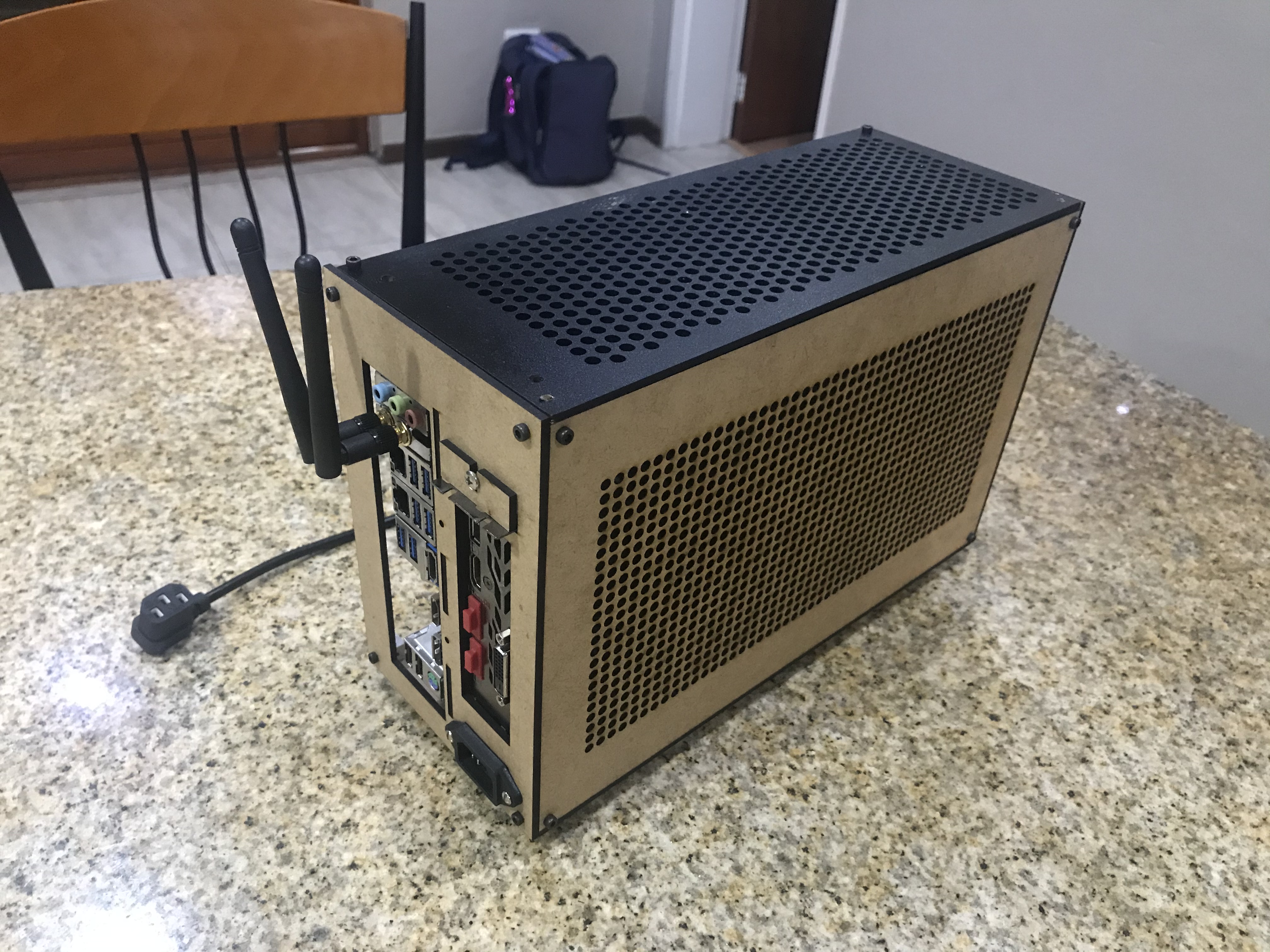

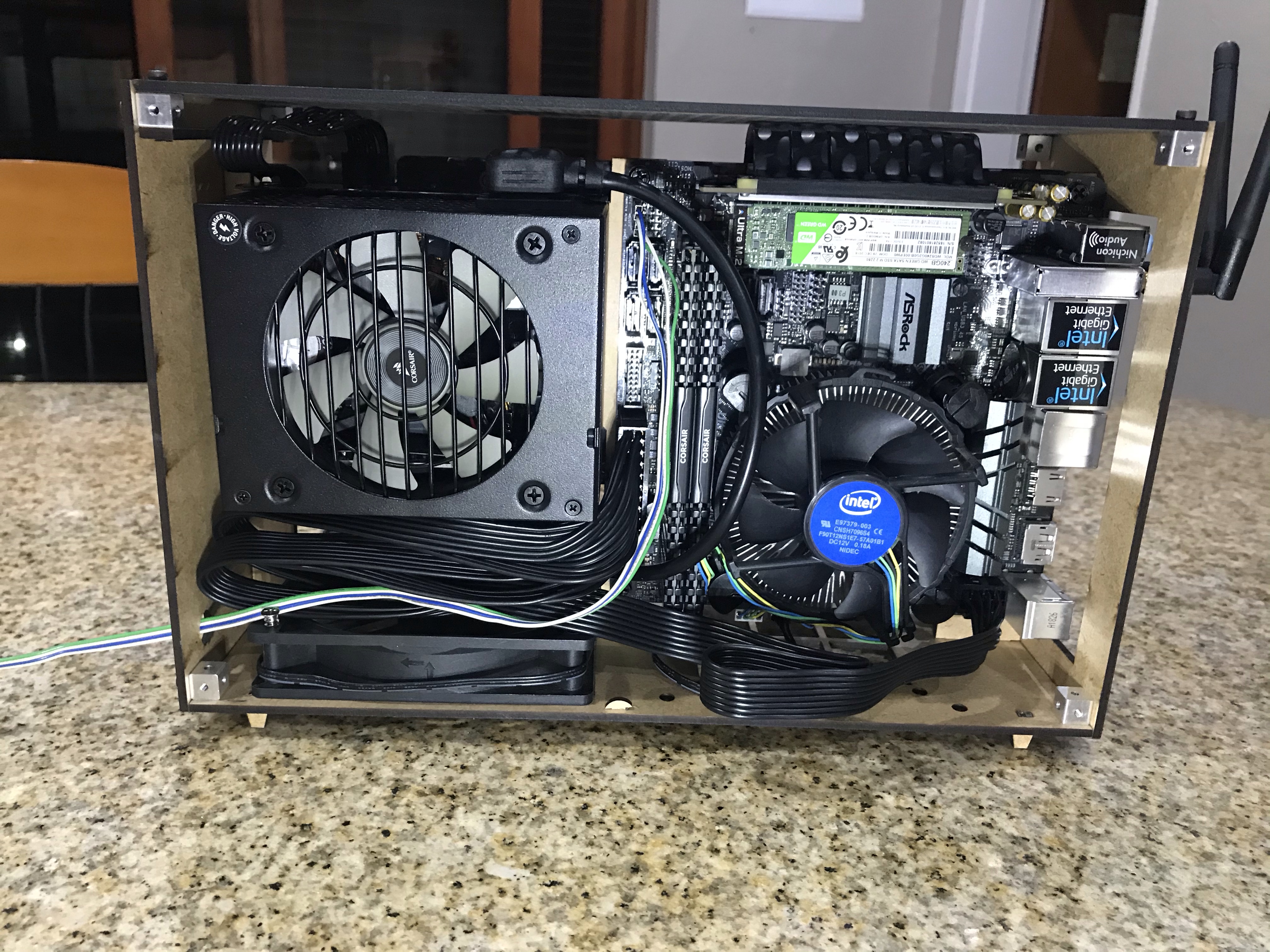

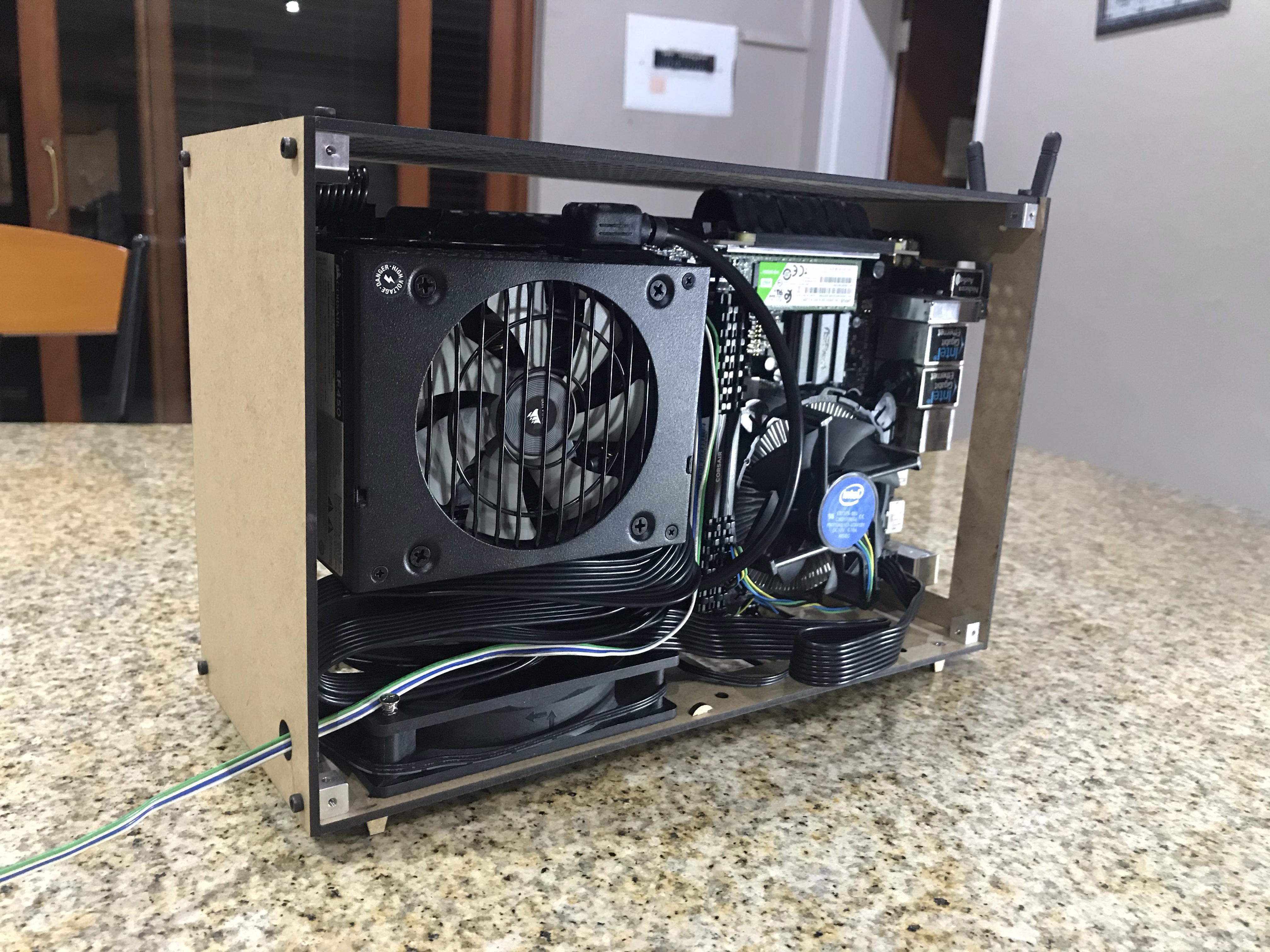

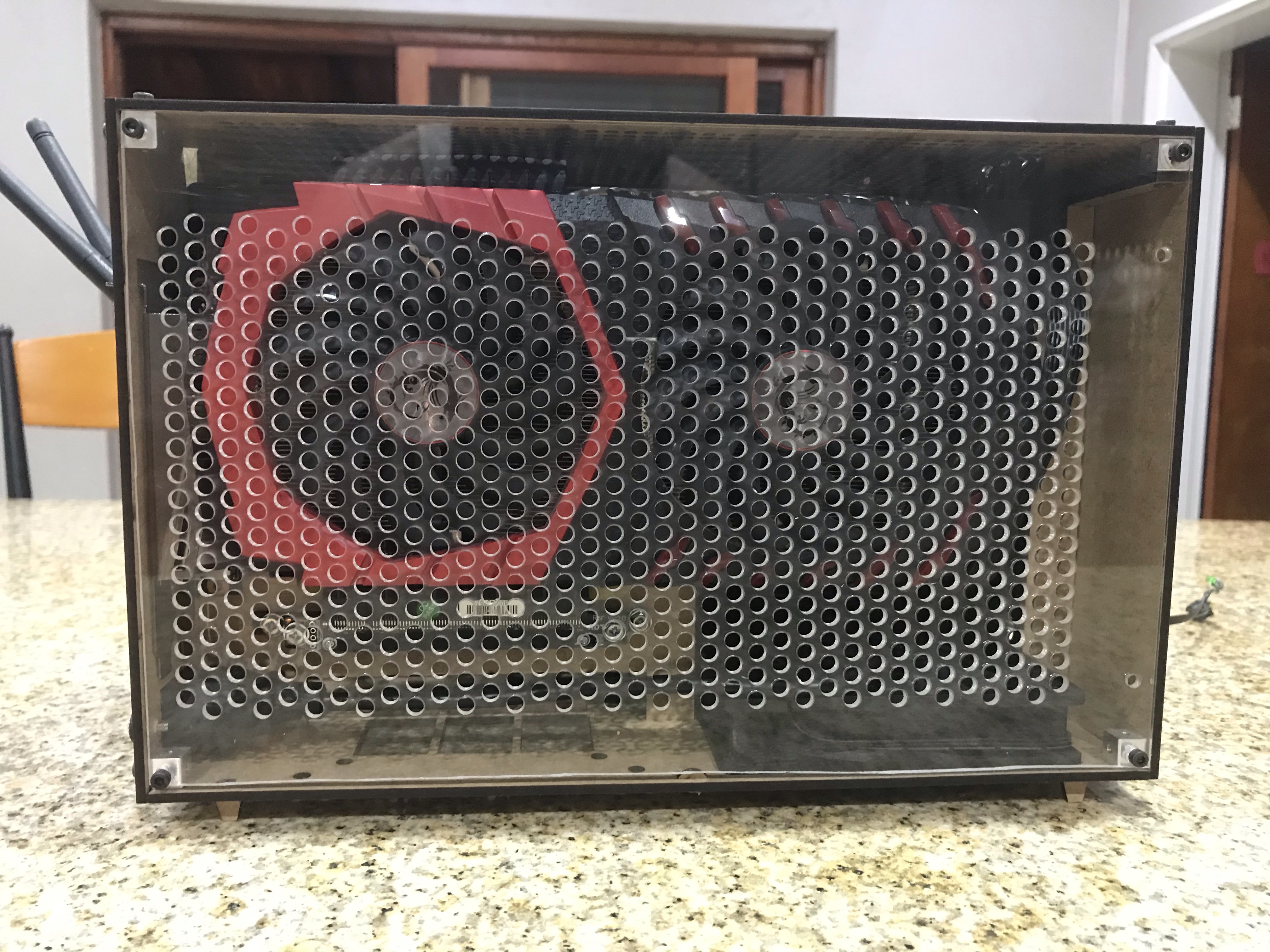

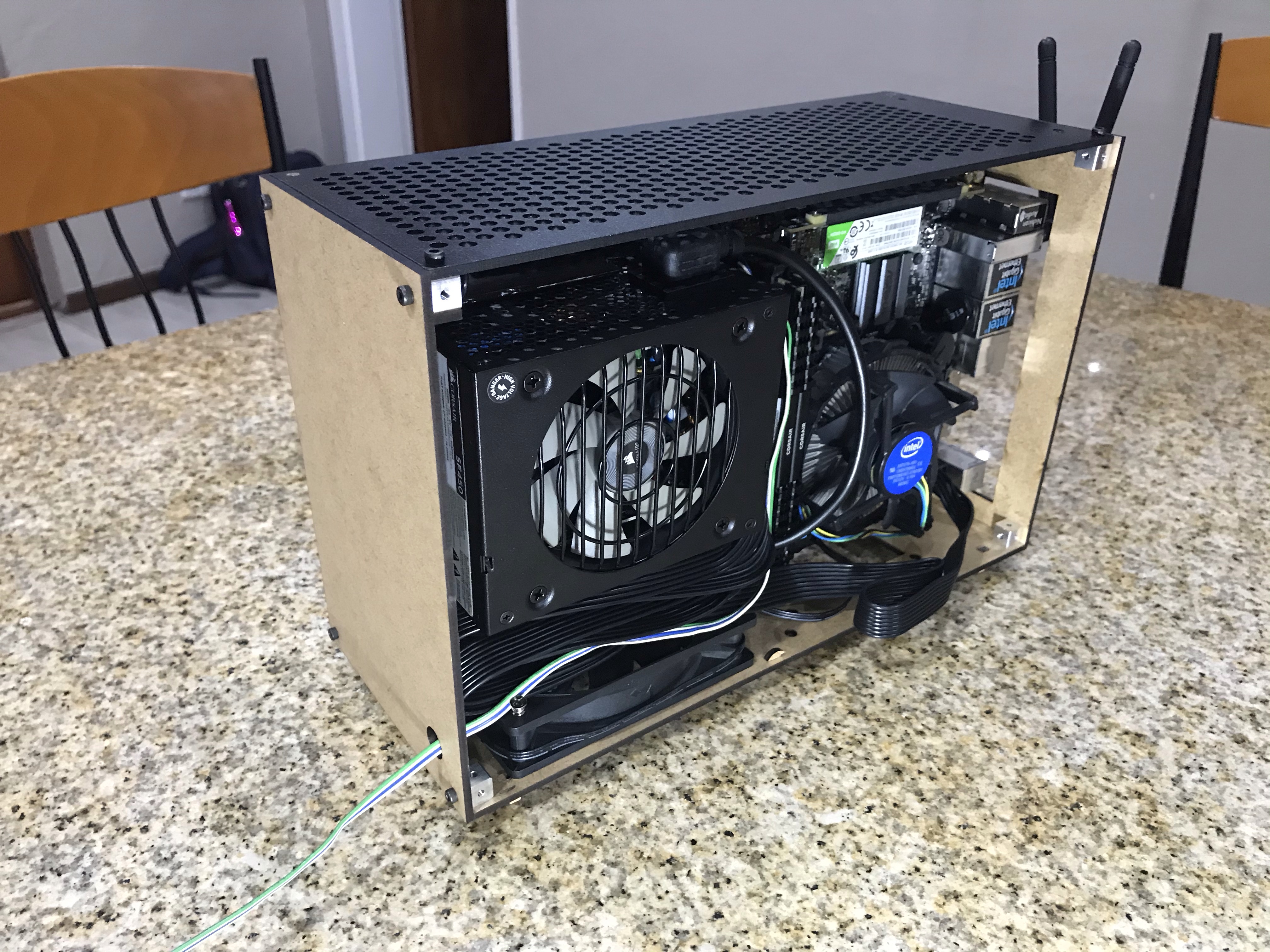

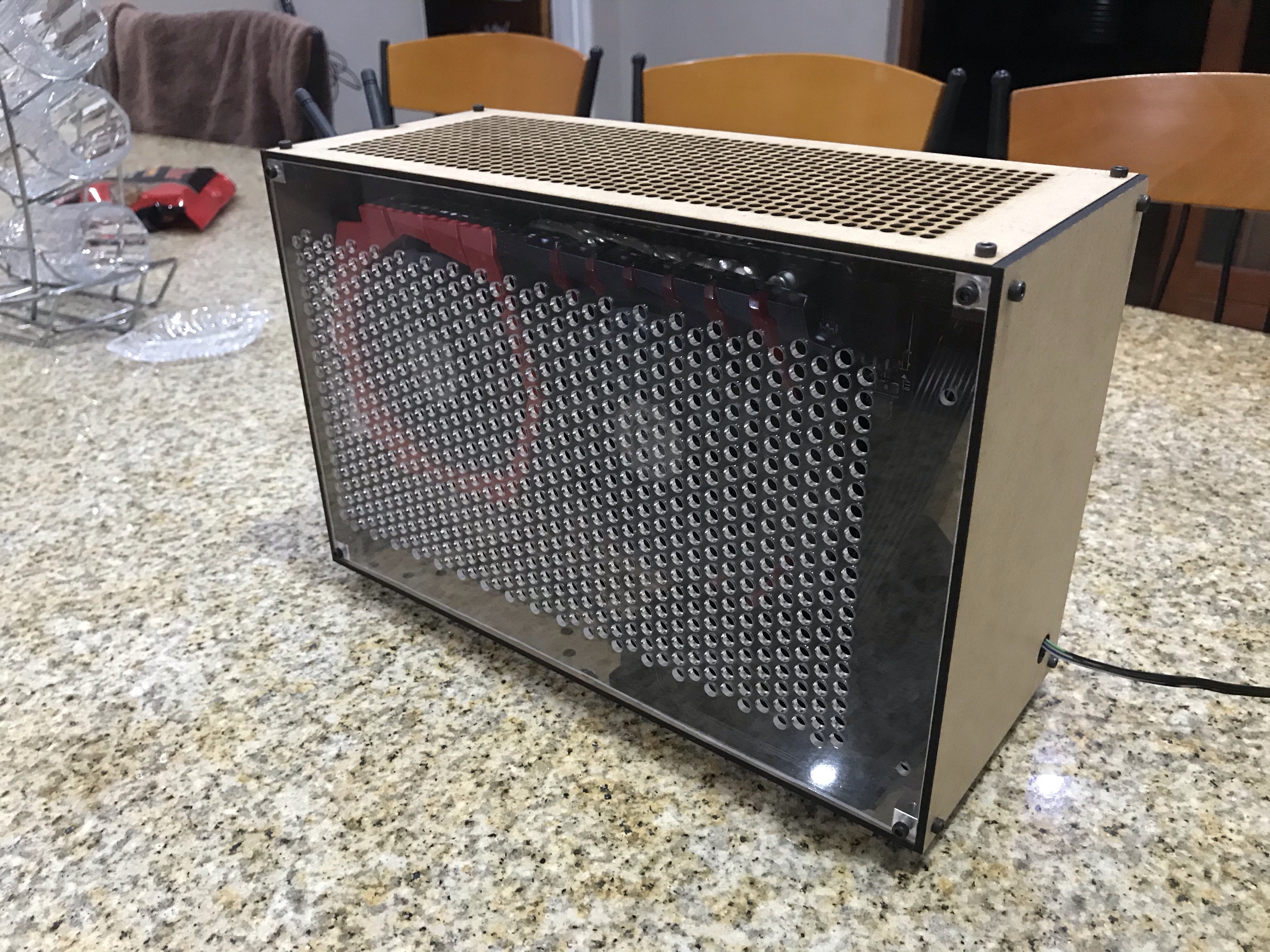

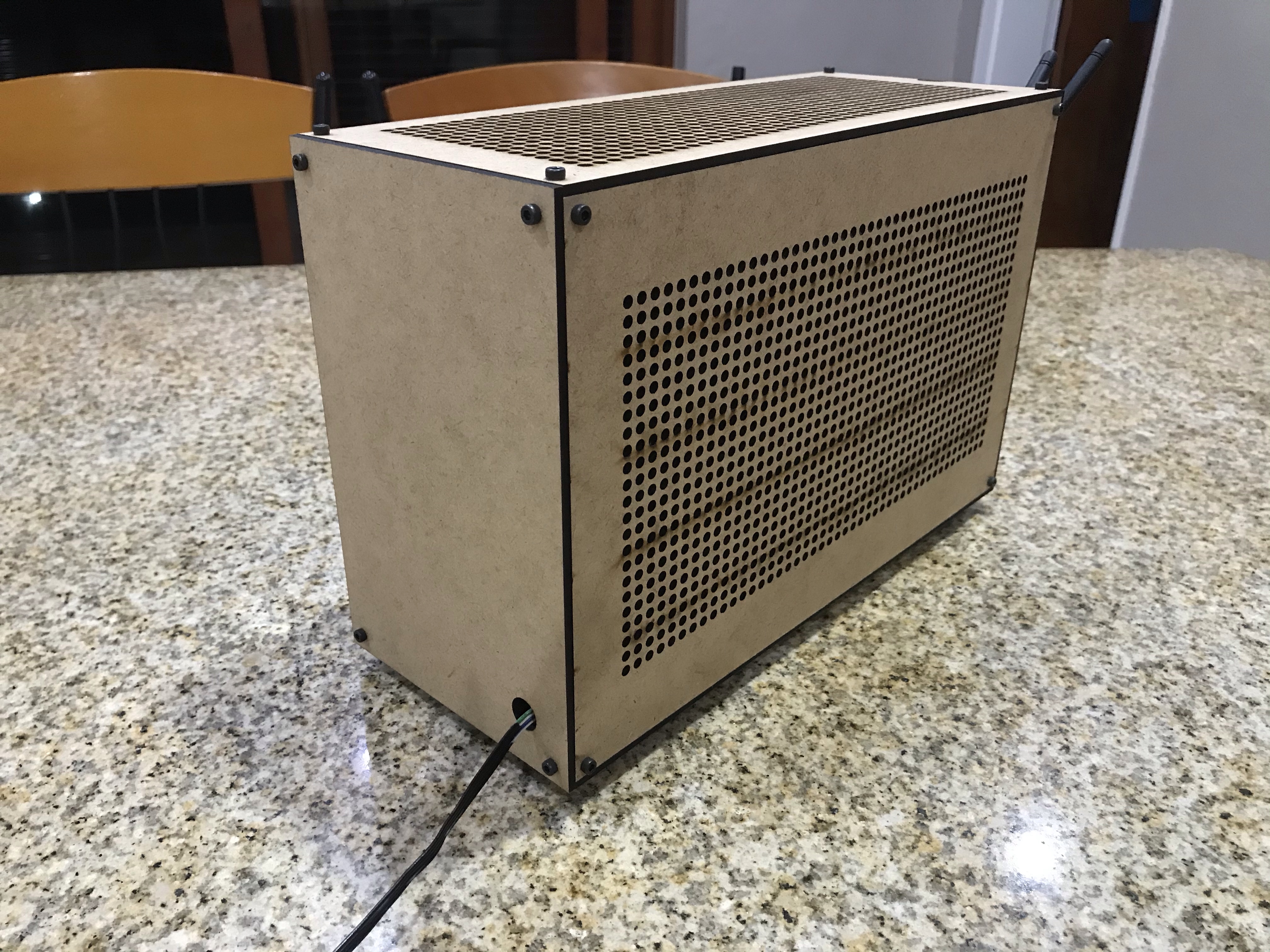

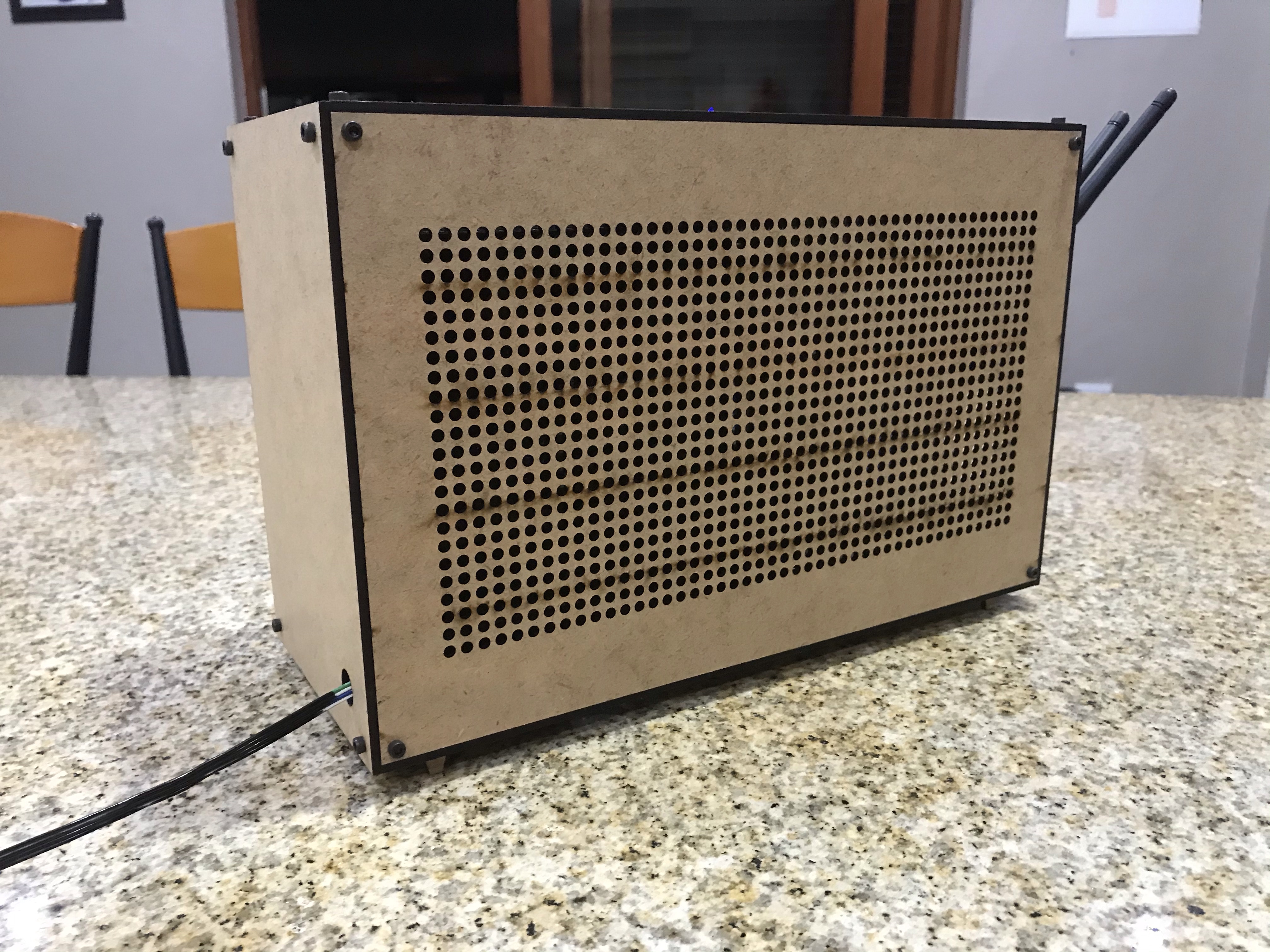

Yes, it i wood. MDF to be exact. It's better to build like this for me until I am 100% satisfied with how things are, before submitting the design for laser cutting in aluminum.

Specs:
320x130x205 (LxWxH)

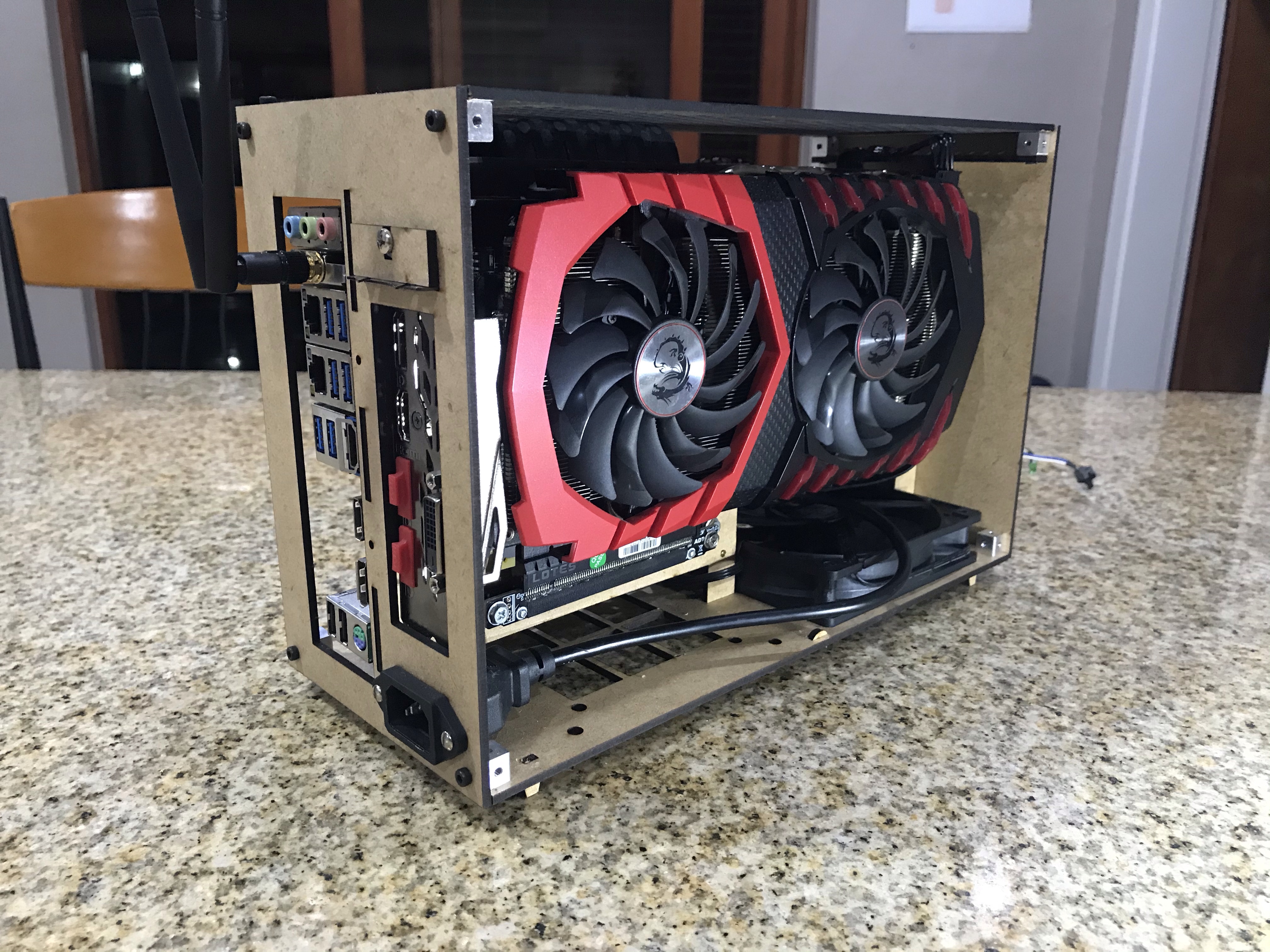

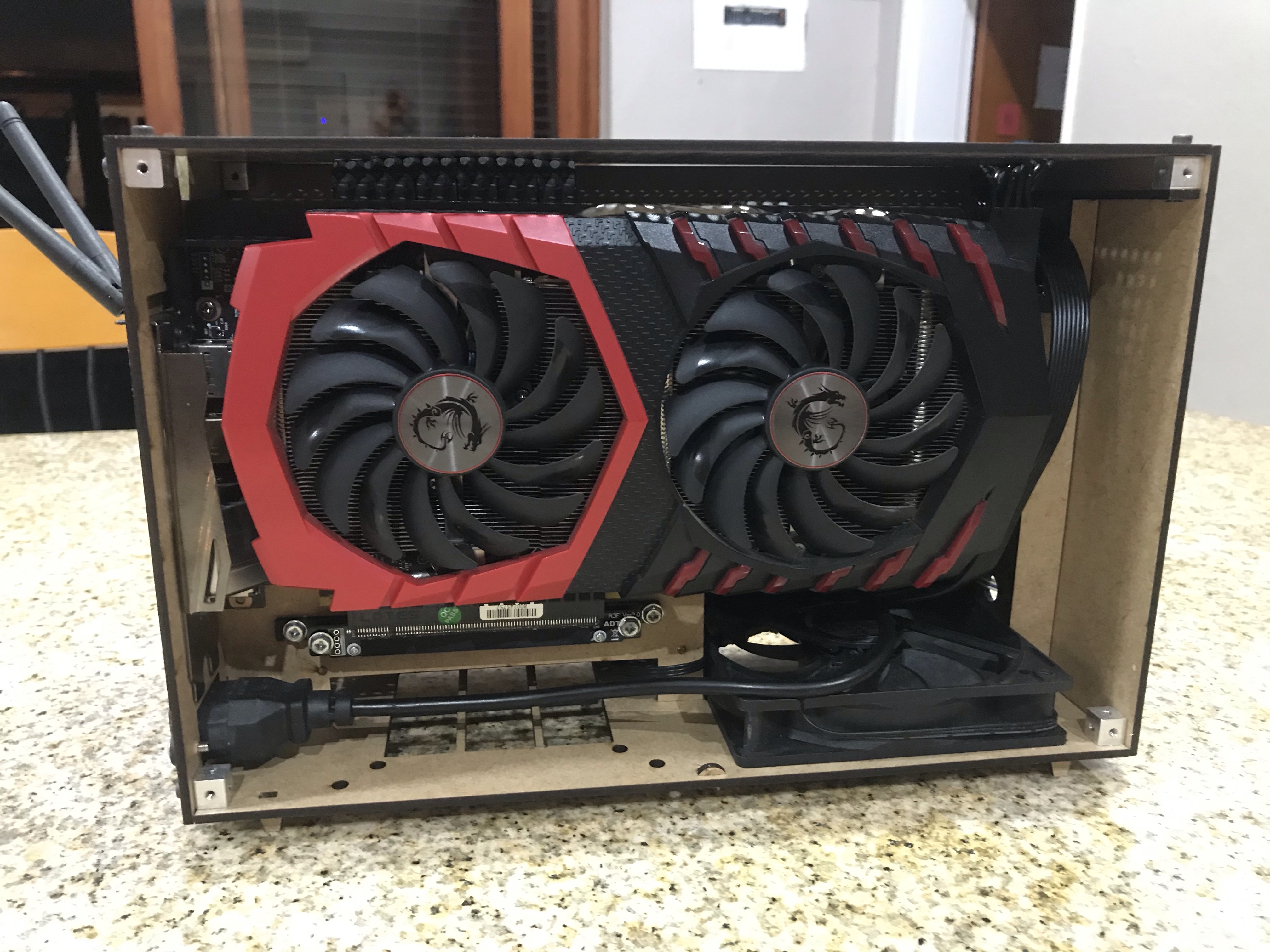

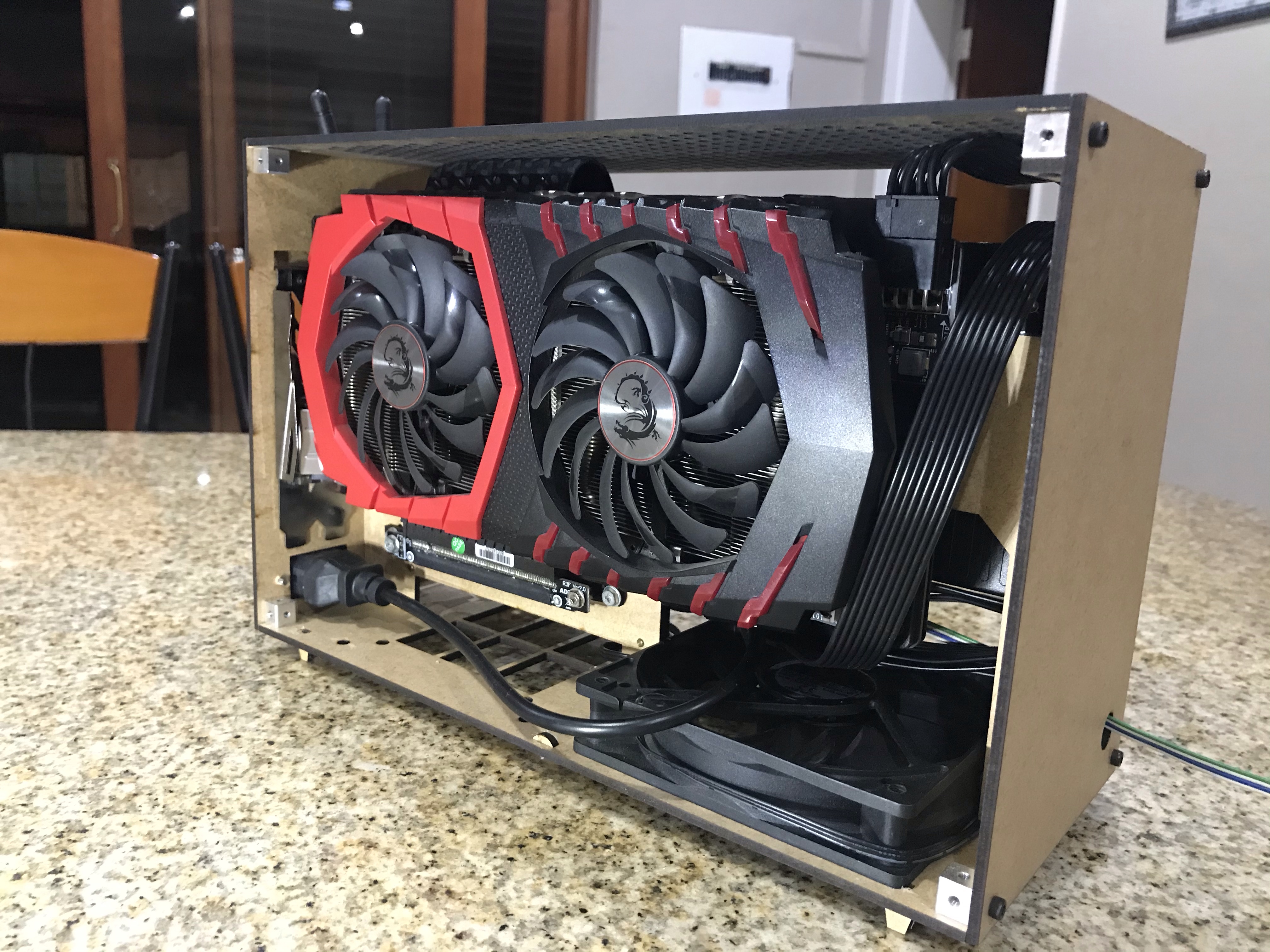

Dual slot GPU's upto 310mm long

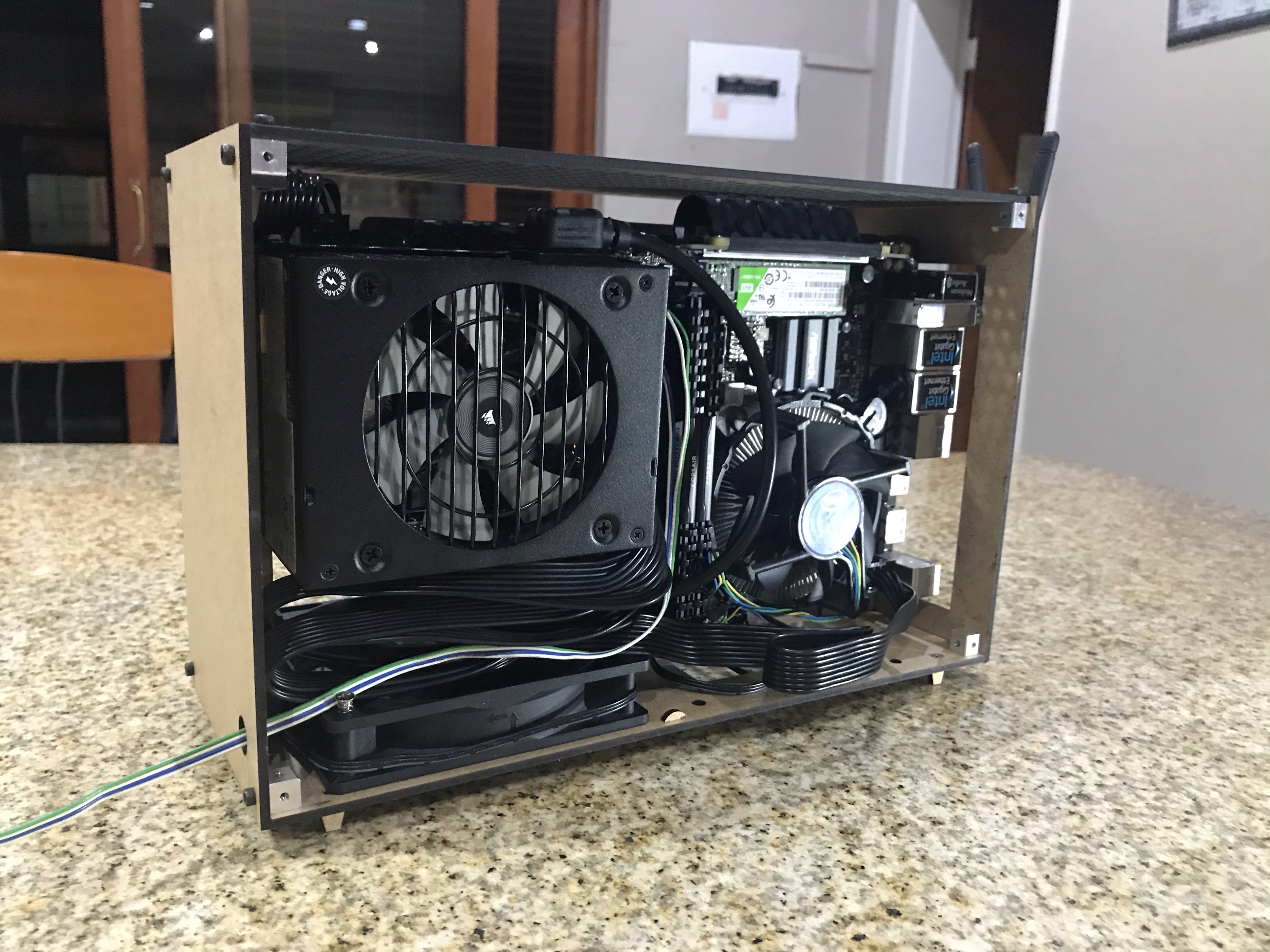

SFX PSU (duh)
CPU coolers upto 50mm (not 100 sure on this)

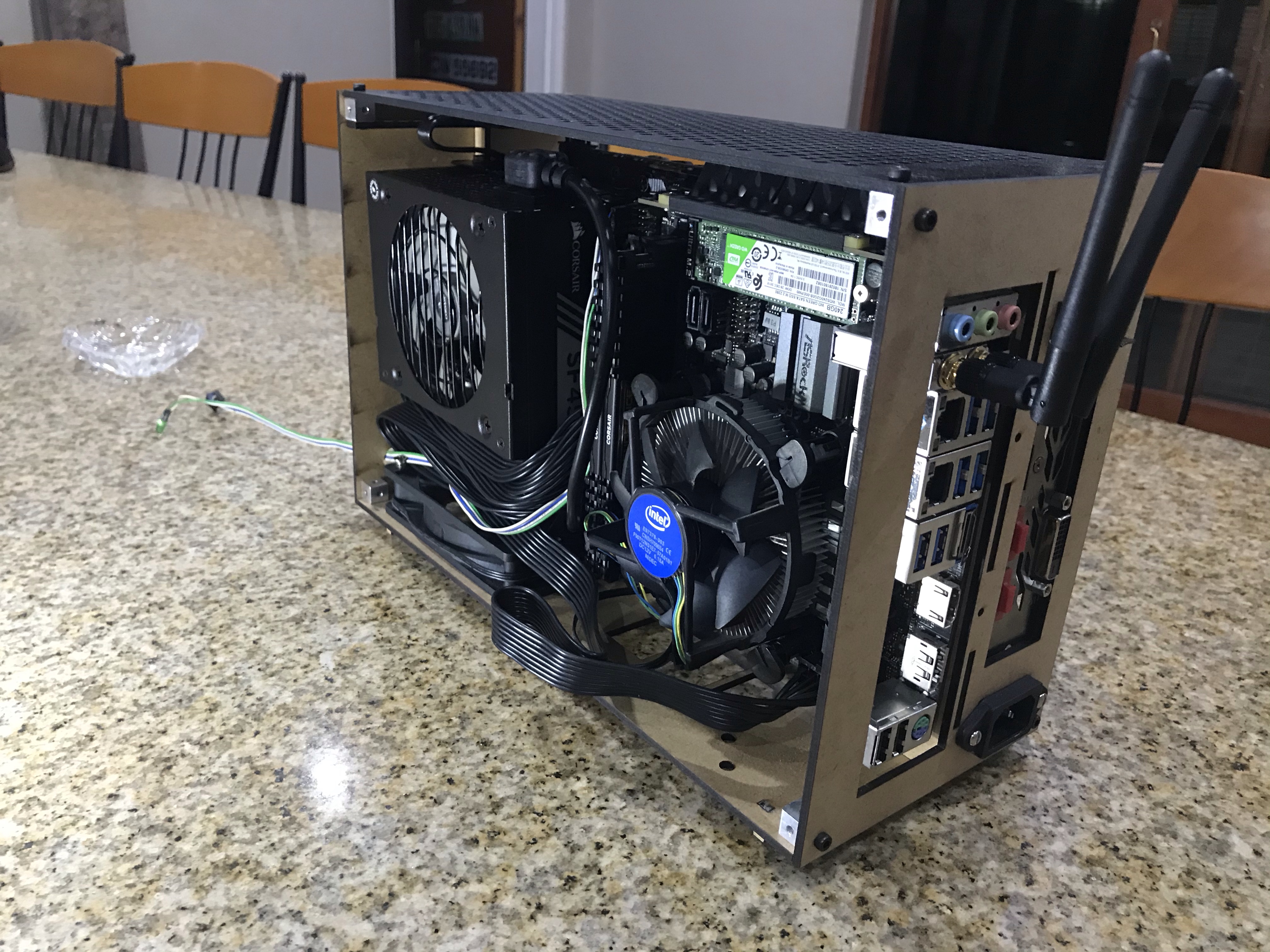

Currently only supports M.2, but I'm cooking up a solution to mount a 2,5inch somewhere.
Support for a either a 120/92mm fan underneath the PSU and a 92x15 fan underneath the motherboard.

As always, criticism and comments welcome.:LOL:











Off-The-Rocks

Getting My Rocks On
VIP Supporter
Rating - 100%
108   0   0
Joined
Mar 15, 2011
Messages
10,384
Reaction score
1,259
Points
5,805
Location
PTA North
laser'ing the MDF yourself?

ooooo, I love those alu cubes.... need to get me some more


-=sT3V3=-

Well-Known member
Rating - 100%
92   0   0
Joined
Apr 20, 2010
Messages
604
Reaction score
72
Points
1,785
Location
Randburg - Johannesburg
I like the mdf for prototyping man!
I see you went for a hard backing to mount the motherboard.. why not just tabs on the external of the chassis?
my 92mm aio keeps up with 130w cpu *wink*


Off-The-Rocks

Getting My Rocks On
VIP Supporter
Rating - 100%
108   0   0
Joined
Mar 15, 2011
Messages
10,384
Reaction score
1,259
Points
5,805
Location
PTA North
still want to know if you laser the MDF yourself :(

I want to get some alu cable combs done, but having a single 1 CNC'd out of alu costs too much because of "minimum charge" so needing someone *cough cough* to help with the prototyping :(


SYNERGY

Cannon Fodder
Rating - 100%
5   0   0
Joined
Aug 31, 2012
Messages
71
Reaction score
10
Points
885
Age
33
You should start a service where you sell and build these for carbies!

Plenty of guys wanting some small custom case but can't find anything locally that doesn't cost a small fortune
^^ Definitely what he said!


SohailCPT

Junior Member
Rating - 100%
26   0   0
Joined
Mar 16, 2015
Messages
637
Reaction score
82
Points
1,085
Location
CPT
still want to know if you laser the MDF yourself :(

I want to get some alu cable combs done, but having a single 1 CNC'd out of alu costs too much because of "minimum charge" so needing someone *cough cough* to help with the prototyping :(
Apologies for only getting back to you now. I use a local crafts/hobby shop to laser cut for me. They cheap and reasonably quick.
What exactly are you prototyping? A case?


SohailCPT

Junior Member
Rating - 100%
26   0   0
Joined
Mar 16, 2015
Messages
637
Reaction score
82
Points
1,085
Location
CPT
The alu cubes can be bought on TaoBao. Its like R5 for one.


Off-The-Rocks

Getting My Rocks On
VIP Supporter
Rating - 100%
108   0   0
Joined
Mar 15, 2011
Messages
10,384
Reaction score
1,259
Points
5,805
Location
PTA North
How do you navigate a Chinese site 😅

And how does shipping work to here?

I'd definitely want to try and get my hands on some of those cubes!
I actually wanna see how much a local place will charge to make them, but not sure if they will do the tapping

want to actually have mine just like 15mm x 15mm to maybe get M4 instead of the M3


SohailCPT

Junior Member
Rating - 100%
26   0   0
Joined
Mar 16, 2015
Messages
637
Reaction score
82
Points
1,085
Location
CPT
How do you navigate a Chinese site 😅

And how does shipping work to here?

I'd definitely want to try and get my hands on some of those cubes!
I use Superbuy. Its like a Chinese middle man site. I tell them I want this on Taobao. They buy it for, store it in their warehouse until I choose shipping to South Africa. I can definitely recommend them.


Toy Machine

Senior Member
Rating - 100%
86   0   0
Joined
Nov 2, 2014
Messages
2,367
Reaction score
408
Points
1,745
Noice, why not try a perspex side panel with vertical rounded capped lines? I imagine just circles will take longer to cute and retain more heat.


Off-The-Rocks

Getting My Rocks On
VIP Supporter
Rating - 100%
108   0   0
Joined
Mar 15, 2011
Messages
10,384
Reaction score
1,259
Points
5,805
Location
PTA North
Noice, why not try a perspex side panel with vertical rounded capped lines? I imagine just circles will take longer to cute and retain more heat.
waterjet or laser shouldn't be an issue

however from what I have seen, price might be a huge factor

wanted to do honeycomb mesh once and it pushed the price up crazy


Chuck_Norris

Junior Member
Rating - 100%
15   0   0
Joined
Jun 2, 2015
Messages
111
Reaction score
36
Points
1,035
Nice, want to build something similar for a micro atx build without gpu and ons of those 12v psu


SohailCPT

Junior Member
Rating - 100%
26   0   0
Joined
Mar 16, 2015
Messages
637
Reaction score
82
Points
1,085
Location
CPT
@souljazk thank you brother. I have located a black MDF wood. I think this will look 100x better when I get it and have it cut again.


So many ideas currently in my head.

1. Extend the case length wise to fit a 120mm AIO
2. Extend height wise for a space for a 240mm AIO.

:D
